Features
- Modular Interlocking Design with 'L' Shaped Connectors to add multiple protectors to increase length
- Patented 5-bar tread surface for maximum traction
- Safety warning symbols Integrated into the mould design

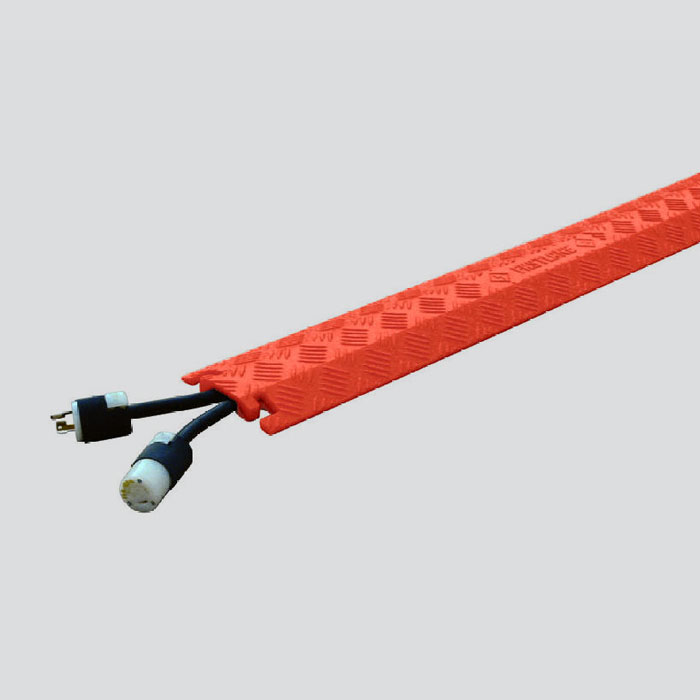

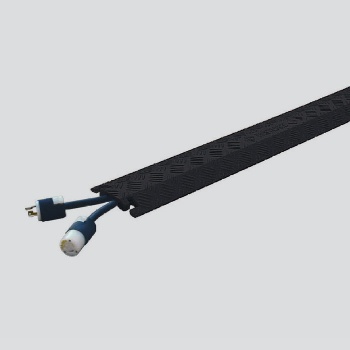

- Available in Orange or Black
- Reaction Injection Moulded (RIM) Polyurethane Construction is abrasion, impact and weather resistant whilst being UV stable
- Lightweight Modular design makes setup, disassembly and storage quick and easy
- Ideal for use in Pedestrian Areas, Venues, Light Vehicle Traffic and Warehouses
Specifications
L-Connectors
| A: Length | 36 in. | 91.44 cm |
| B: Width | 5.25 in. | 13.33 cm |
| C: Height | 0.75 in. | 1.9 cm |
| D: Channel Width | 1.5 in. | 3.81 cm |
| E: Channel Height | 0.5 in. | 1.27 cm |
| Weight | 3 lb. | 1.4 kg |
LOAD CAPACITY
Max load tested at 70°F (21°C)1,050 lb./Tyre (477 kg) and 2,100 lb./Axle (954 kg)
