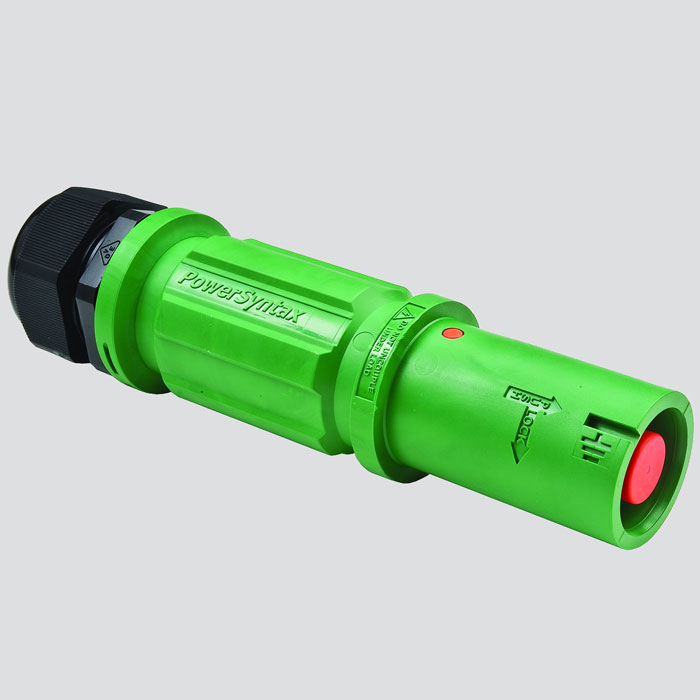

Syntax SPX Line Source up to 750A Line 5

Features

• Innovative ergonomic hand grip for easy handling
• Finger protection IP2X to prevent accidental touching of live contact parts
• Contact to housing retention through flame-retardant UL94-VO plastic cotter pin
• No special tools are required for assembling
• Bayonet lock with secondary locking pin
• Special ergonomic release-key (supplied separately) for the releasing of the secondary locking pin
• Crimp termination for cables up to 240mm²
• Watertight IP68 plastic cable gland M40 for cable strain relief retention range 15-28mm
• Permanent markings to identify phase/line and safety information are embossed on connector's shell
• Maximum current of 750A
