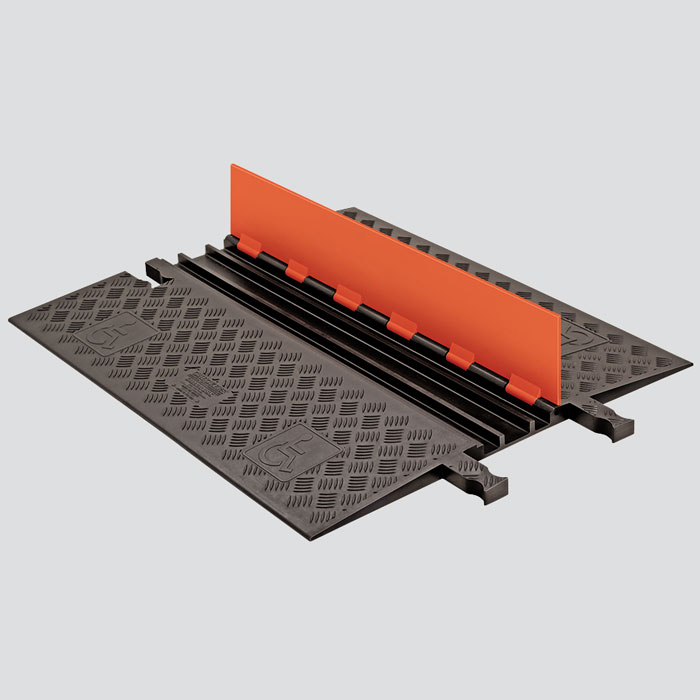

Features
- Modular Interlocking Design with 'Dog Bone' Connectors to add multiple protectors to increase length
- ADA/DDA Compliant
- Reinforced Hinged lid for easy cable placement
- Patented 5-bar tread surface for maximum traction
- Safety warning symbols Integrated into the mould design
- Orange and Black design to increase visibility against any background
- Reaction Injection Moulded (RIM) Polyurethane Construction is abrasion, impact and weather resistant whilst being UV stable
- Low profile ramp designed to minimise tripping hazards in areas with high volumes of pedestrian traffic
- Ideal for use in the Events and Entertainment Industries
Specifications
Dog Bone
Connectors
| A: Length | 36 in. | 91.44 cm |
| B: Width | 30.3 in. | 76.98 cm |
| C: Height | 1.25 in. | 3.18 cm |
| D: Channel Width* | 1.28 in. | 3.25 cm |
| E: Channel Height | 0.75 in. | 1.9 cm |
| Weight | 23.4 lb. | 10.61 kg |
*NOTE: Centre channel width is 2 in. (5.08 cm)
LOAD CAPACITY
Max load tested at 70°F (21°C)27,000 lb./Tyre (12,246 kg) and 54,000 lb./Axle (24,492 kg)
