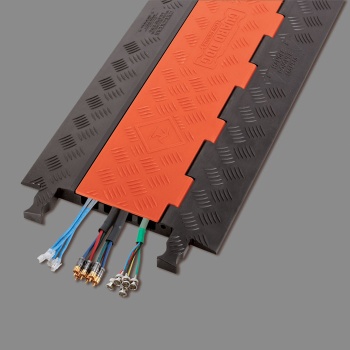

Features
- Modular Interlocking Design with 'Dog Bone' Connectors to add multiple protectors to increase length

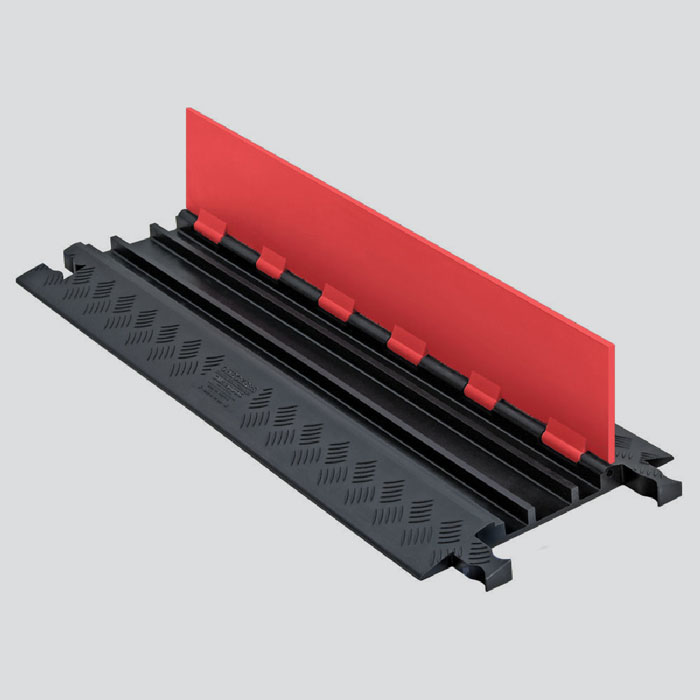

- Reinforced Hinged lid for easy cable placement
- Patented 5-bar tread surface for maximum traction
- Safety warning symbols Integrated into the mould design
- Orange and Black design to increase visibility against any background
- Reaction Injection Moulded (RIM) Polyurethane Construction is abrasion, impact and weather resistant whilst being UV stable
- Low profile ramp designed to minimise tripping hazards in areas with high volumes of pedestrian traffic
- Ideal for use in the Events and Entertainment Industries
Specifications


Dog Bone
Connectors

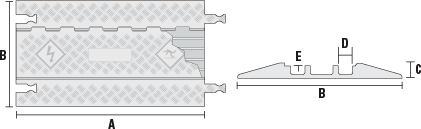

A: Length | 36 in. | 91.44 cm |
B: Width | 13.8 in. | 35.07 cm |
C: Height | 1.25 in. | 3.18 cm |
D: Channel Width* | 1.25 in. | 3.25 cm |
E: Channel Height | 0.75 in. | 1.9 cm |
Weight | 12.2 lb. | 5.53 kg |
*NOTE: Centre channel width is 2 in. (5.08 cm)
LOAD CAPACITY
Max load tested at 70°F (21°C)
17,000 lb./Tyre (7,711 kg) and 34,000 lb./Axle (15,422 kg)
